MS - 350

How it works

Metal bellows balanced mechanical seal

How it works

Metal bellows balanced mechanical seal

Product
description
  • 1,1 - Seal face and metal bellows
  • 1,2 - O - Ring (For rotary seal)
  • 1,3 - Drive collar
  • 1,6 - Set screws
  • 2 - Stationary Seat
  • 3 - O - Ring (For Stationary Seal)
Technical
features
  • Single seal
  • Balanced
  • Metal bellows lndependent of rotation direction
Operating
Range
  • d1 = 16 - 100mm
  • p = 25bar
  • t = -40 / 220°C
  • Vg = 20m/sn
Materials
  • Rotary seal faces: Carbon, Silicon carbide, Tungsten Carbide
  • Stationary seal faces: Chromuim Nickle 316 ti Silicon carbide, Ceramic, Tungsten Carbide
  • Elastomers : Viton (FKM), EPDM
Stationary Seat
Alternatives
  • G-16 G-9 G-4 G-6

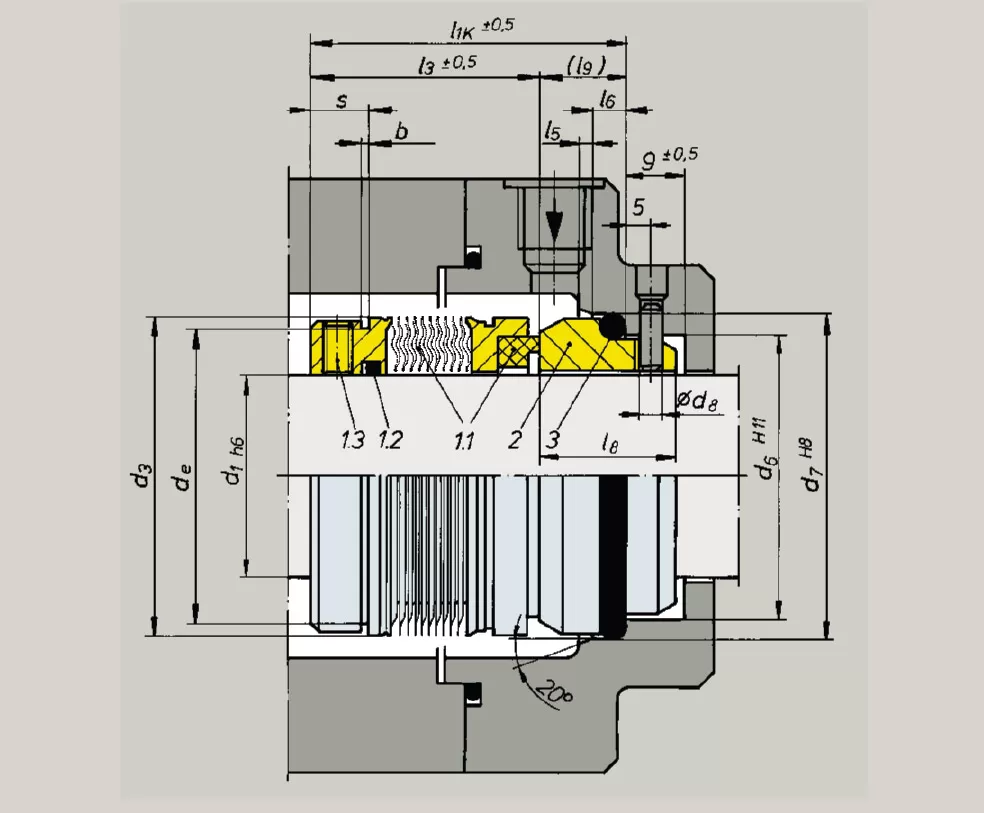

Technical
design

Product section with measurements and proportions.
