MS 7 / MS 7 N

How it works

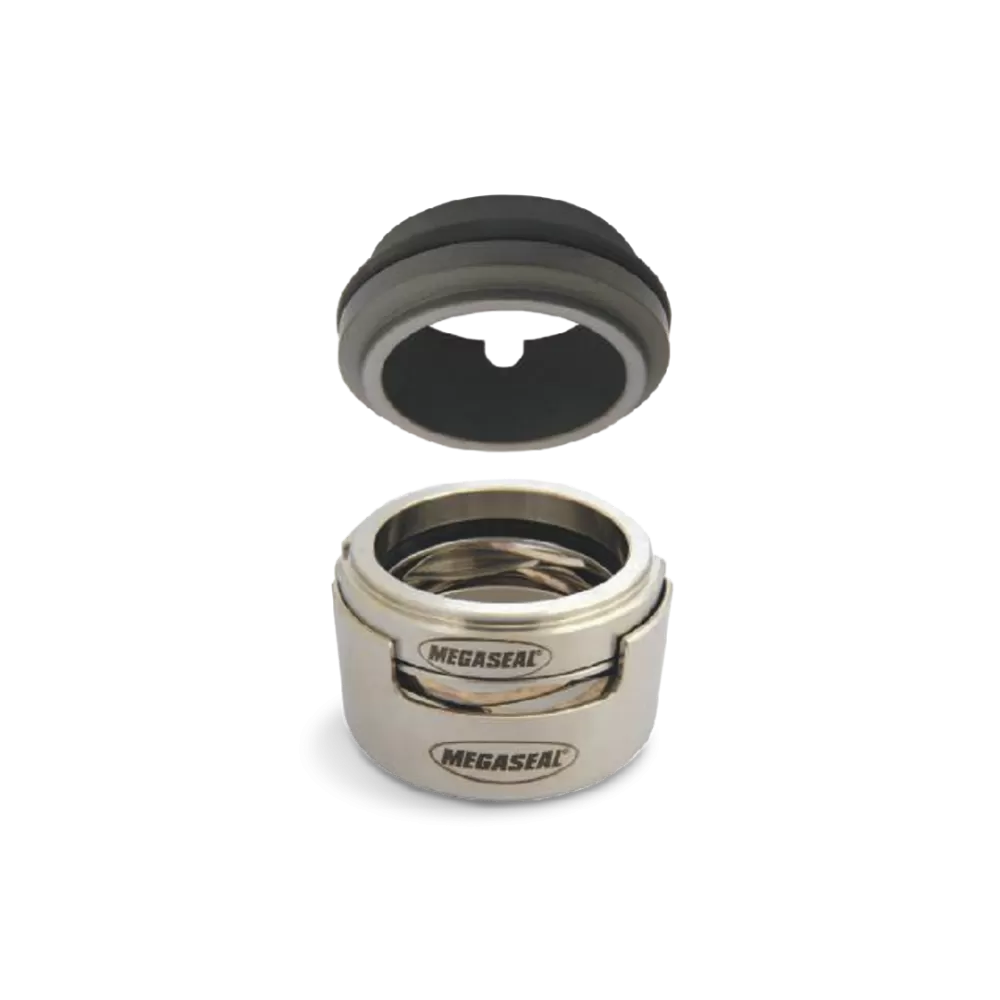

Wave spring single seal

How it works

Wave spring single seal

Product
description
  • 1,1 - Seal face
  • 1,2 - Drive collar
  • 1,3 - Thrust Ring
  • 1,4 - O - Ring (For Rotary Seal)
  • 1,5 - Sinus Spring
  • 1,6 - Set screws
  • 3 - O - Ring (For Stationary Seal)
Technical
features
  • Single seal
  • Unbalanced
  • Independent of rotation direction
Operating
Range
  • d1 = 14 - 200mm
  • p1 = 16 (25)bar
  • t = -50 / 220°C
  • Vg = 20m/sn
Materials
  • Rotary seal faces: Chromium Nickle 316 ti Silicon carbide, Tungsten carbide
  • Stationary seal faces: Silicon carbide, Carbon, Tungsten carbide, Chromium Nickle 316 ti
  • Elastomers: Viton (FKM), EPDM, Nitril (NBR) Silicon
Stationary Seat
Alternatives
  • G-13 G-9 G-6 G-4 G-60

Technical
design
